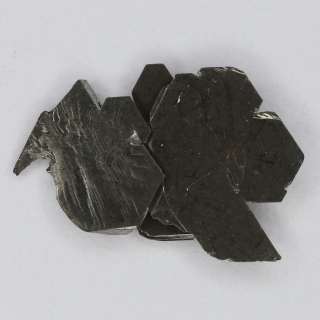

二碲化钽 TaTe2 (Tantalum Ditelluride)

  • 价格 8700.12
  • 库存20
  • 品牌HQGraphene
  • 产地荷兰
  • 型号TaTe2
  • 数量
详情
晶体尺寸:10毫米
电学性能:金属,电荷密度波(CDW)(TCDW ~ 170K)
晶体结构:单斜晶
晶胞参数:a = 1.479nm,B = 0.364nm,C = 0.934nm,α=γ= 90°,β= 110.71
晶体类型:合成
晶体纯度:>99.995%
表征方法:XRD、拉曼、EDX


X-ray diffraction on a TaTe2 single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker.


Powder X-ray diffraction (XRD) of a single crystal TaTe2. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.


Stoichiometric analysis of a single crystal TaTe2 by Energy-dispersive X-ray spectroscopy (EDX).


Raman spectrum of a single crystal TaTe2. Measurement was performed with a 785 nm Raman system at room temperature.
